How to Use History Graphs

In this guide, we’ll tell you all about GTmetrix History Graphs and how to use them.




Overview

GTmetrix users can view past reports generated through their account by opening any report and navigating to the History tab.

The History tab provides History Graphs to visualize your historical data as well as other options to keep track of your webpage’s performance.

In this guide, we’ll show you all the different ways in which you can use History Graphs.





Dashboard Report Table

Before we discuss History Graphs in detail, let’s take a look at the basic Dashboard Report Table functionality (logged-in users only).


The Dashboard Report Table shows you all your latest reports ordered by how recently they were generated.


Each row of the Dashboard Report Table displays the Last Report generated for a URL and the Analysis Options used in the test.

Here’s how the Dashboard Report Table behaves:


  • Successfully analyzing a page for the first time will insert a new row for that particular URL/Analysis Options combination.

  • Testing the same page with different Analysis Options will insert a new row for that particular URL/Analysis Options combination.

  • Re-Testing the page with the same Analysis Options will overwrite the previous Last Report on that particular row.


More Dashboard Report Table functionality is detailed in our How to Organize Reports with Dashboard Filters article.





History Graph Basics

In order to see a report’s History Graph, view a report and click on the History tab.

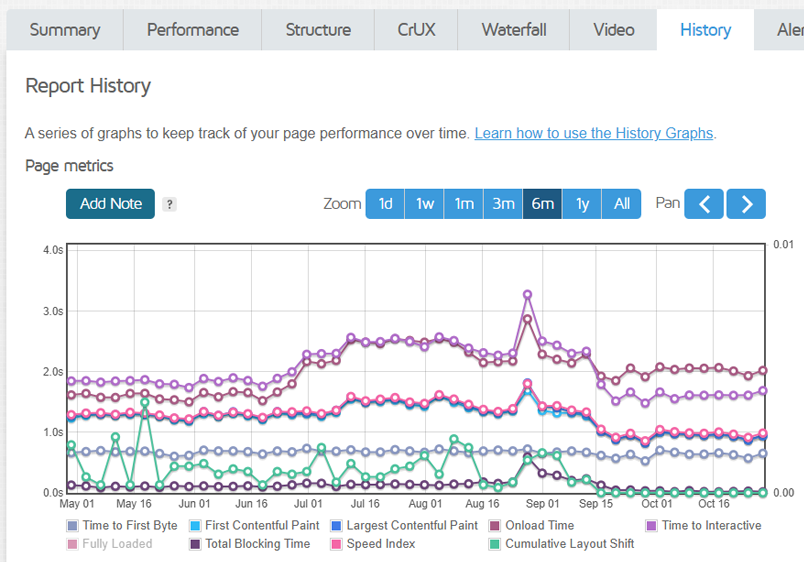

Click on the History tab to view previously generated GTmetrix Reports.


Note that you must have tested a page at least twice in order to generate report history for that page.





Available History Graphs

The History tab provides three graphs to visualize the historical report data. They are:

  • Page metrics graph – Displays 9 major metrics (e.g., TTFB, LCP, TTI, etc.).
  • Page sizes and request counts graph – Displays your page size and total number of requests.
  • Page scores graph – Displays your GTmetrix Grade/Performance/Structure Scores (PageSpeed/YSlow scores for Legacy Reports).

Each History Graph has a colour-coded legend below it, signifying what the data points are for that particular graph.

History Graphs are also synced in terms of interaction (panning, zooming, adding notes) i.e., performing an action on one graph applies the same action to the other History Graphs (except toggling legends).





Hovering on a Point on the Graph

To view a specific report, simply hover over a data point on any History Graph. A small box should pop up showing you when that report was generated, with three options below it.

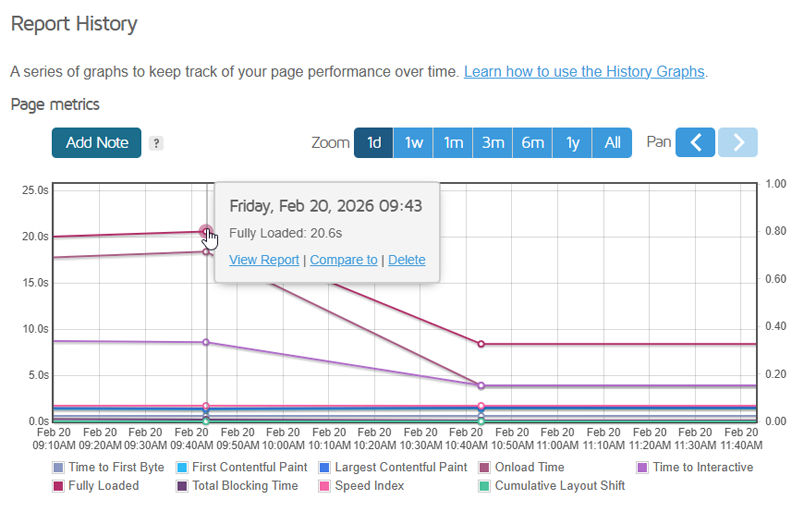

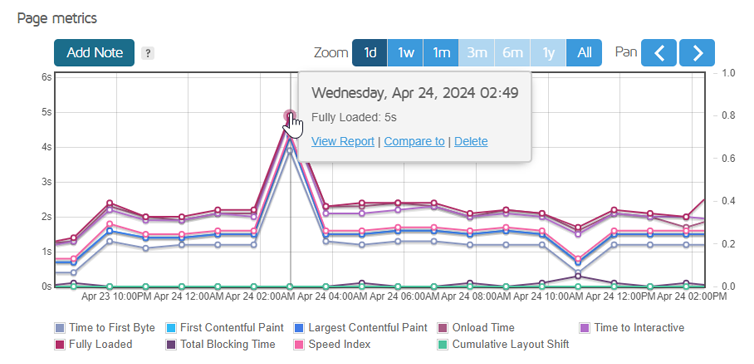

Hovering over a data point reveals when that report was generated, and provides options to view, compare, or delete that GTmetrix Report.


Here’s what happens when you click on any of these options:

  • View Report – Opens that particular GTmetrix Report (You can also click on the point itself).
  • Compare to – Compares that particular report to the one you’re currently viewing.
  • Delete – Deletes that particular GTmetrix Report.


If you have a significant amount of historical data, you’ll instead find cluster points, which contain aggregated data for multiple reports. More on this below.





Loading More Reports

For performance purposes, GTmetrix will only load the first 1000 reports on the History Graph.

The number of reports (i.e., data points) shown on your History Graph will vary according to your plan level:





Guest Users

Guest users (i.e., users who aren’t logged-in) can only see a maximum of 10 GTmetrix Reports on the History Graphs. If more report history is available, you’ll see three dots on the left hand side of the History Graph.

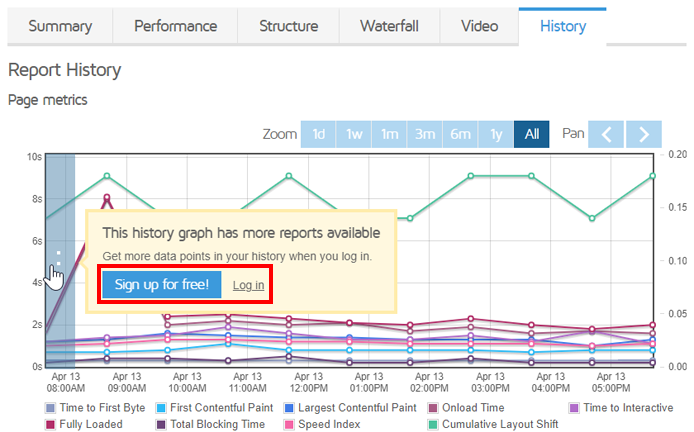

Guest users can view a maximum of 10 reports on their History Graphs before being asked to sign-up or log-in.


If you hover over the three dots, you’ll see a message asking you to either sign up for a new account or log-in to an existing account.





Basic Users

If you’re a Basic user, you can view up to 200 reports on your History Graphs.

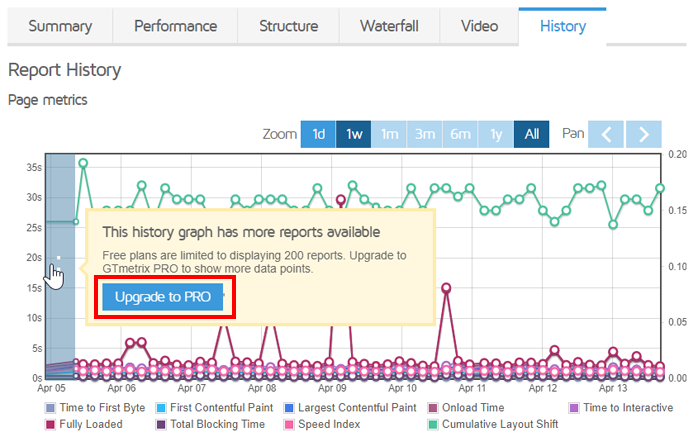

Basic users can view up to 200 reports on History Graphs.


If more report history is available, you’ll see the three dots on the left hand-side of the History Graph. You’ll need to upgrade to a PRO plan to load more reports.





PRO Users

For PRO users, GTmetrix History Graphs display the first 1,000 reports, by default. If more report history is available and you wish to load them, you can do so in one of two ways:

1) Clicking on the Load More Reports Button

Hover over the arrow seen on the left hand side of the History Graph and click on the Load more reports button.

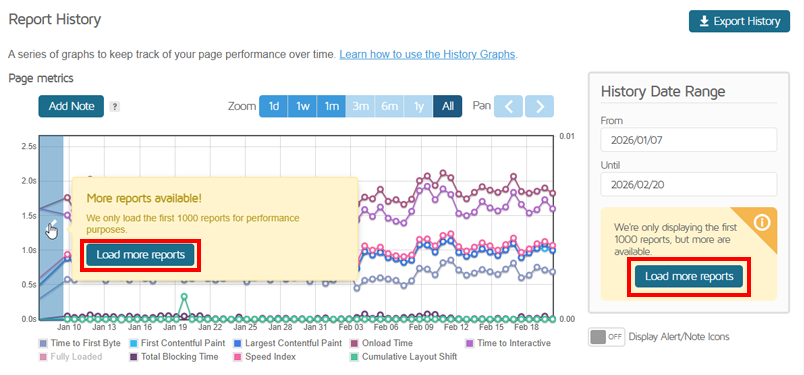

PRO users can hover over the arrow on the left hand side of the History Graph and click on the “Load more reports” button to load your entire report history.



2) Clicking on the Load More History Button

On the History tab of your GTmetrix Report, look for the Load more history button under the History Date Range box. Click on this button to load your entire report history.


Click on the “Load more history” button to load your entire report history.






History Graph Interaction

Now that you understand the basics of History Graphs, we can discuss History Graph interaction.





Toggling Legends (Page Metrics Graph only)

The Page metrics graph shows 9 different metrics. They are:


By default, all the metrics are active on the graph. You can click on any legend item to individually toggle it on or off so that you can choose which metrics you want to view on the graph.


You can toggle specific timings to appear on the History Graph.


When a legend item is toggled as inactive, it will appear greyed out and that metric won’t be displayed on the graph.

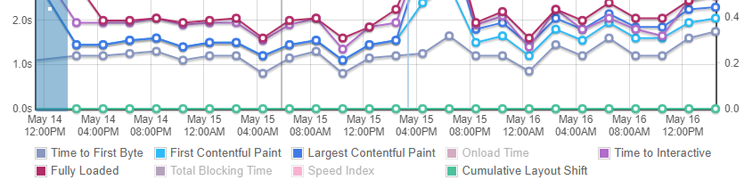

Toggling legend items on page metrics History Graph, showing difference between active and inactive metrics.


GTmetrix will also remember which legend items are active/inactive for future visits so that you don’t have to repeat this process.





Panning and Zooming

History Graphs are defaulted at the “All” zoom level, which displays your entire report history (or the first 1,000 reports if you haven’t loaded them all).

If you have a significant amount of reports generated for the page, you’ll find that reports may be aggregated into cluster points.

These cluster points have larger circles to indicate the availability of more than one report.

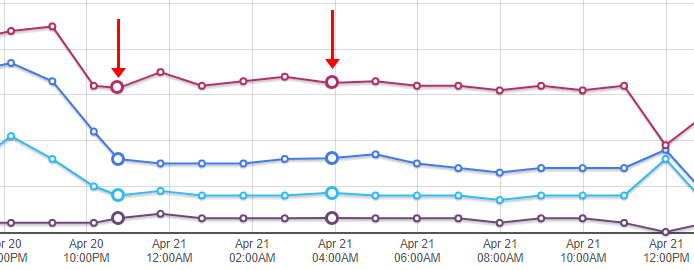

Cluster points appear larger according to the number of reports aggregated within them.


You can hover over any of the cluster points to reveal how many reports are available in that cluster.

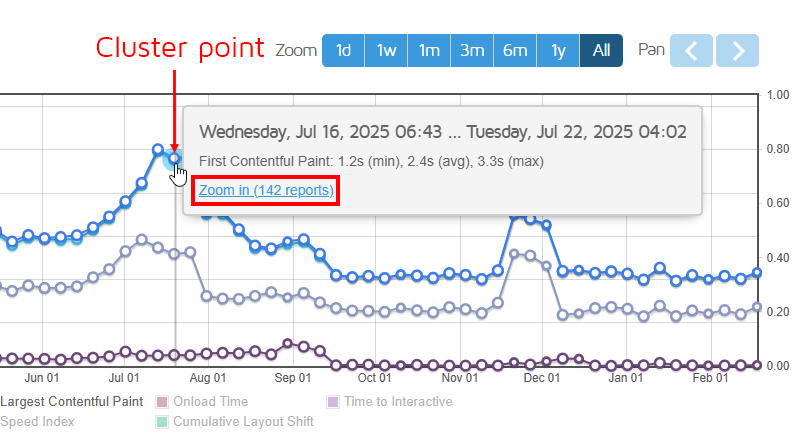

Hover over a data point to reveal how many aggregated reports are available in the cluster point.


Hovering over a cluster point also shows you the average for that particular metric, along with minimum, maximum and average values.

Click on the cluster point itself or the Zoom in link for a closer look at the reports that were aggregated. You may need to zoom in more than once, depending on how many reports have been generated over that time period.


Note: When you zoom into one graph, the same effect is applied to the other graphs as well.



Zoom in for a closer look at reports in the cluster, and hover over a data point to focus on individual reports.


Once zoomed in, you can use the left and right arrows on the top-right of the History Graph to pan across different areas of the History Graph.





Zooming by Period

You can zoom by a specific period of time by using the Zoom buttons (1d, 1w, 1m, 3m, 6m, 1y, all) above each History Graph.

Each of these buttons represents a specific zoom level that corresponds to a period prior to the latest report.


Video showing the various zoom levels when the different buttons are clicked and using the pan arrows to show previous and next periods.


For example – 1d zooms in on the reports generated one day prior to the latest report; 1w zooms in on the reports generated one week prior, and so on.

Use the pan arrows to move forwards or backwards in date, depending on the zoom setting used.





Click and Drag Zooming

Manually zoom into a specific part of the History Graph by clicking and dragging over any section of the graph.


Clicking and dragging to manually zoom into to a part of the History Graph


You can do this multiple times to achieve finer zoom levels.





Zooming by Date Range

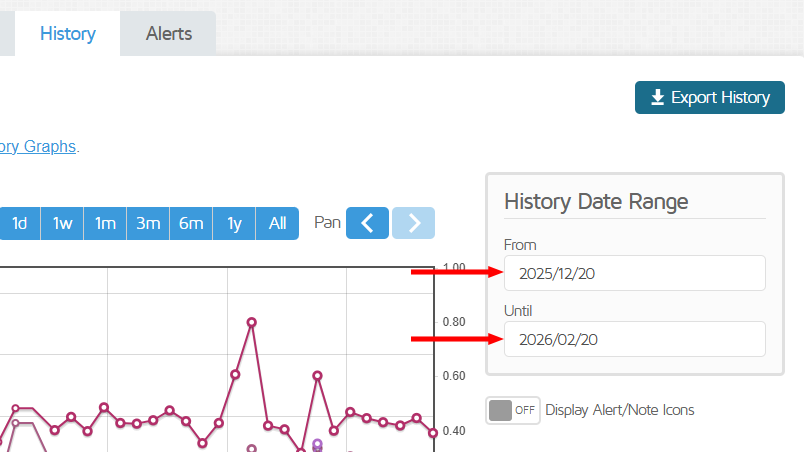

You can also find specific reports in a given time period by using the History Date Range box in the History tab.


Hover over a data point to reveal how many aggregated reports are available in the cluster point.


Select the desired “From” and “Until” dates, and GTmetrix will show you all the reports generated during that period.

By default, GTmetrix only displays the first 1000 reports in History Graphs. Click on Load more history* if you want to display the entire report history.

* Select plans only.





Adding Notes

You can add notes to any of the graphs on the History tab. These can be useful to track changes to your webpage’s performance, including fixes, issues, and updates.


Click on add a note and click on the part of the graph where you want to add the note, type the note and click save when you’re done.


To add a note, follow these steps:

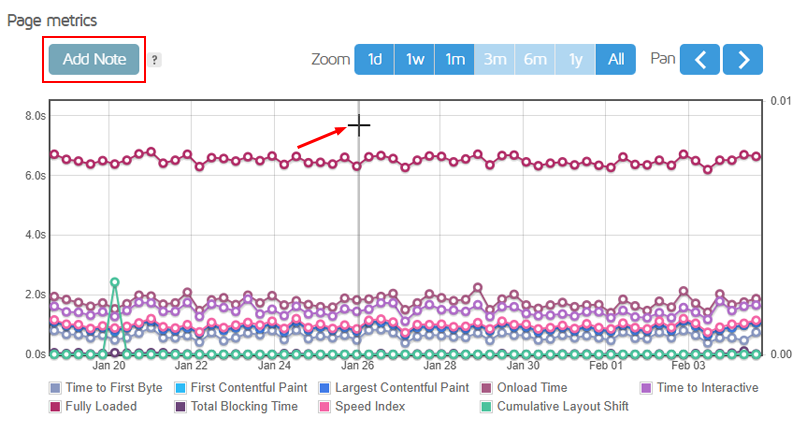

1) Click on Add Note on any of the graphs.
2) Click on any part of the graph, where you want to add the note.

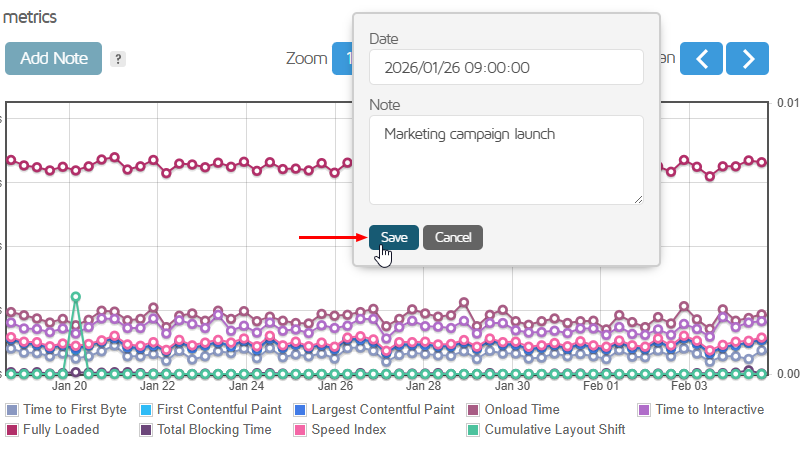

3) Type your note into the resulting text box and click on Save.

You can also click on an existing note to edit or delete it.

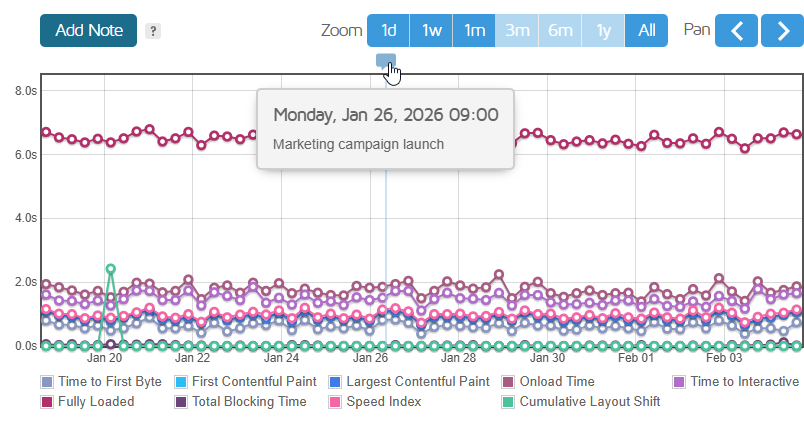

Added notes will been seen across all History Graphs for convenient tracking.






History Downloads

You can download your historical performance data in .csv format. This history.csv file will contain data such as Report generation date (and time), Performance Metrics, Page Details, Browser Timings, etc.

Note: The amount of historical data you can download matches how many reports are displayed on your History Graphs.

  • Guest users cannot download historical data unless they sign-up or log-in to an account.
  • Basic users can download historical data for the first 200 reports.
  • PRO users can download your entire report history.

You can download this file in one of two ways:





Download History Button

On the History tab, click on the “Download History” button.


Click on the Download History button to download your entire report history in .csv format.






Using the URL Suffix Shortcut

Add /history.csv to the end of any GTmetrix Report URL in a monitored series and directly download a CSV file of all your report data.


Add /history.csv suffix to the end of your GTmetrix Report URL and directly download your entire report history in .csv format.


The amount of historical performance data available in the CSV file depends on your plan level and matches the amount shown on your History Graphs.

Note that if you have a large amount of historical reports, your download will take a while to generate.





Summary

History Graphs are useful for viewing, comparing, and analyzing past performance data, and to keep track of your webpage’s performance history.

Use this guide to learn the different ways you can use these History Graphs, and consider upgrading to a PRO plan if you require longer report data retention or more History Graph visualization.
